1 INTRODUCTION

Prostate cancer is a common male urogenital system cancer. Prostate cancer ranks second, in terms of incidence and mortality, for malignant tumors in European and American men ^[1]. Prostate cancer incidence in China is increasing due to unhealthy lifestyles and aging ^[2]. Early diagnosis and active treatment strategies can greatly improve prostate cancer patient prognoses but the mortality rate is still high due its malignancy ^[3]. Current diagnostic methods for prostate cancer include serum PSA level measurement and histopathological staining. These methods do not provide either early, or accurate diagnoses ^[4]. An effective biomarker for early diagnosis and targeted treatment is urgently needed.

Protein kinase B, also known as Akt, and mitogen-activated protein kinase (MAPK) are, respectively, the key proteins in the PI3K/Akt signaling, and MAPK signaling, pathways ^{[5, 6]}. A number of studies have reported that PI3K/Akt signaling, and MAPK signaling, pathways closely associate with cell proliferation and invasion in a variety of malignant tumors ^{[7, 8]}. Activation of the PI3K/Akt signaling pathway can lead to apoptosis protein BAD phosphorylation and other proteins to suppress cell apoptosis ^[5]. MAPK signaling pathway activation can promote excessive tumor cell proliferation leading to oncogenesis ^[6]. Phosphorylated Akt levels in human prostate cancer tissues have been measured by immunohistochemistry with controversial findings.

Waalkes et al. observed a significantly lower p-Akt expressions in prostate cancer tissues compared to normal prostate tissue (p = 0.028) ^[9]. p-Akt protein levels were found to be significantly higher in prostate cancer tissues than in benign prostatic hyperplasia or high-grade prostatic intraepithelial neoplasia tissues ^[10]. Ko et al. demonstrated that the p-Akt ratio in prostate cancer tissues was significantly lower than that in high-grade prostatic intraepithelial neoplasia tissues ^[11]. Che et al. reported that p38 MAPK levels significantly correlated with tumor progression and prostate cancer patient survival ^[12]. Phospho-MAPK levels in prostate cancer tissues has, to our knowledge, yet been investigated and reported on. Any relationship between Akt and MAPK phosphorylation in prostate cancer has not been addressed.

This study investigated MAPK and Akt phosphorylation in prostate cancer tissues and benign prostatic hyperplasia (BPH) using immunohistochemistry and Western blot.

2 MATERIALS AND METHODS

A total of 71 prostate cancer tissues were collected at our Department between January 2013 and December 2014. Prostate cancer patient mean age was 56.2 ± 6.5 (52 - 68). None received radiotherapy, chemotherapy, or immunotherapy before surgery. Benign prostatic hyperplasia (BPH) tissues were also collected from 10 BPH patients during the same period. BPH patient mean age was 54.1 ± 3.5 (45 - 63). The tissues collected were kept in liquid nitrogen, or fixed by 10 % formaldehyde for paraffin embedding. This study was approved by the ethics committee of The Third Xiangya Hospital. The signed informed consent form was obtained from all subjects.

Paraffin embedded tissues were sectioned at a thickness of 5 μm. Paraffin sections were baked at 60°C for 30 min, and then rinsed in dimethyl benzene for 15 min to deparaffinize prior to hematoxylin and eosin (HE) staining. After removing the dimethyl benzene from gradient alcohol, the sections were twice washed with distilled water. Next, the sections were stained with hematoxylin for 15 min and twice washed with distilled water. After differentiation suing 1 % hydrochloric acid alcohol for 30 s, the sections were further washed in distilled water for 15 min. The sections were then stained with 1 % eosin for 3 min and rinsed in 70 % alcohol. Finally, the sections were soaked in a xylene-alcohol mixture (1:1), for 5 min, then soaked in xylene for 5 min and 15 min. Slices were mounted and observed under a microscope. The Gleason grading system was used to classify tumor tissues as being: from well-differentiated (level 1, score 1) to undifferentiated (level 5, score 5). If tumor tissue differentiation was heterogeneous, a Gleason Score (GS) was obtained by primary and secondary structure scores. For single-structure tissue, the GS was doubled to obtain its final score ^[13].

p-AKT and p-MAPK protein expression in tissues was detected by immunohistochemistry. Paraffin-embedded sections were deparaffinized using xylene, gradient alcohol, and distilled water. The sections were incubated with 3 % H₂O₂ solution to block peroxidase activity for 10 min at room temperature (RT). After blocking with a 5 % BSA solution at RT, the sections were incubated with a primary antibody (1:2000 dilution for Ser473 p-AKT and Thr183 p-MAPK) at 37°C for 2 hrs. After washing with 1 × PBS, the sections were incubated with a biotin-conjugated secondary antibody (1:1000) at 37°C for 30 min. The sections were then incubated with HRP-conjugated streptavidin at 37°C for 30 min. After washing with 1 × PBS, the sections were developed using DAB chromogenic agents for 10 min. The reaction was then stopped, and the sections were washed with distilled water. After hematoxylin counterstaining, dehydration, hyalinization, and mounting, the sections were observed under a microscope. Five random fields were selected under a high-power field (400X) to calculate total cell count and positively-stained cell count ^[14].

Total protein was extracted from cells using an RIPA buffer. The proteins were separated on a 15 % SDS-PAGE gel and electrophoretically transferred to PVDF membranes. After being blocked using a TBST buffer containing 5 % skim milk at 37°C for 1 hr, the membranes were incubated with a primary antibody (anti-Akt, anti-Akt Ser473, anti-MAPK, and anti-p-MAPK were purchased from Cell Signaling Technology Inc., 1000 dilution) at 4°C overnight. After washing with a TBST buffer, the membranes were incubated in an HRP-conjugated IgG secondary antibody (1:1000) at RT for 1 hr. The membranes were then incubated with chromogenic substrates and exposed to X-ray films. Protein band optical densities were scanned and analyzed as previously described ^[15].

All statistical analyses were performed using SPSS 20.0 statistical software. Qualitative data was compared using the Kruskal-Wallis Test. Enumeration data were presented as either, rate or percentage, and compared using the chi-square test. Measurement data is presented as mean ± standard error and compared by using either t test or one-way ANOVA. A two-tailed p < 0.05 was considered statistically significant.

3 RESULTS

The prostate tumor tissues were HE-stained (Fig. 1) for Gleason grading (Table 1). After grading 18 cases had a GS of 2-4 points. In these, medium-sized glandular tumor tissue was observed, but no, or only minor, infiltration phenomenon appeared in the tumor margin (Fig. 1b). Twenty-five cases were graded with a GS of 5-7 points. In these, dispersed dysplastic glands and obvious interstitial infiltration were observed (Fig. 1c). Thirty-one cases were graded with a GS of 8-10 points. In these, almost no adenoid structures, or acini fusion, were be found. Tumor cells had flake-like, funicular, or single-celled structures, and severe diffuse infiltration appeared (Fig. 1d).

FIGURE 1

Fig. 1 HE staining of prostate cancer tissues (100×)

a, BPH tissue; b, prostate cancer tissue at 2-4 points; c, prostate cancer tissue at 5-7 points; d, prostate cancer tissue at 8-10 points.

TABLE 1

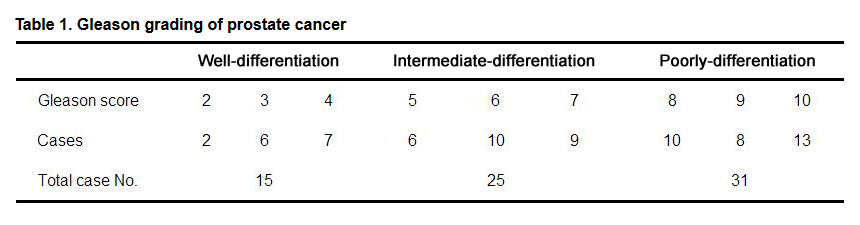

Table 1. Gleason grading of prostate cancer

Immunohistochemical staining showed that phosphorylated Akt and MAPK proteins were usually in the cytoplasm (Fig. 2). P-Akt staining was positive in a part of prostate cancer tissues, and a part of BPH tissues. P-Akt staining intensity was stronger in prostate cancer tissues than that in BPH tissues, suggesting that p-Akt overexpressed in prostate cancer. Positive p-MAPK staining was observed in only part of prostate cancer tissue and part of BPH tissue. p-MAPk staining intensity was weaker in prostate cancer tissues than that in BPH tissues. Proliferation correlated negatively with p-Akt protein levels, but positively with p-MAPk levels.

FIGURE 2

Fig. 2 Immunohistochemistry of p-Akt and p-MAPK.

A) p-Akt immunohistochemistry (400×). B) p-MAPK immunohistochemistry (400×). a, BPH tissue; b, well-differentiated prostate cancer tissue; c, intermediate-differentiated prostate cancer tissue; d, poorly-differentiated prostate cancer tissue.

Total, and phosphorylated, Akt and MAPK protein levels in prostate cancer tissues were measured using Western blot (Fig. 3A). p-Akt ratios to total Akt and p-MAPK ratios to total MAPK protein levels were calculated (Fig. 3B). The p-Akt/total Akt ratio increased, whereas the p-MAPK/total MAPK ratio decreased in prostate cancer with a poorer differentiation (p < 0.05).

FIGURE 3

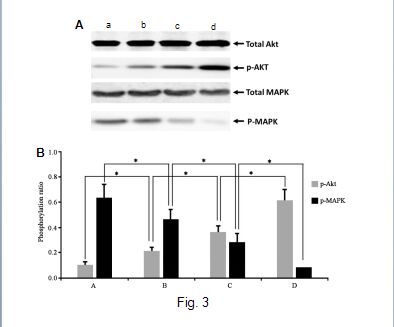

Fig. 3 Western blot assay of Akt, p-Akt, MAPK, p-MAPK protein expression.

A) Representative Western blot. B) Semi-quantitative analysis of p-Akt/Akt and p-MAPK/MAPK ratio. a, BPH tissue; b, well-differentiated prostate cancer tissue; c, intermediate-differentiated prostate cancer tissue; d, poorly-differentiated prostate cancer tissue. *p < 0.05 between p-Akt/Akt and p-MAPK/MAPK.

4 DISCUSSION

Previous studies have compared the tissues. This suggests that Akt and MAPK phosphorylation associates prostate cancer differentiation.

Akt is a serine / threonine-specific protein kinase that plays an important role in cell proliferation and division. Akt can promote phosphorylation of the pro-apoptosis protein BAD, leading to its dysfunction and inhibiting cell apoptosis ^[16]. Akt can reduce p27kip1 protein expression which shortens the cell cycle and promotes cell division ^[17]. Akt protein phosphorylation is necessary for Akt function. Akt phosphorylation is regulated by PI3K and PTEN protein activity. PI3K can promote Akt phosphorylation. PTEN may inhibit PI3K activity and reduce Akt phosphorylation levels ^[18]. A previous study found that the PTEN encoding gene is deleted, and/or mutated, in some prostate cancer tissues, resulting in PTEN expression loss ^{[19, 20]}. This might be one of the reasons that p-Akt levels were higher in prostate cancer tissues than in benign prostatic hyperplasia tissues. High p-Akt levels were correlate with poor differentiation in this study.

MAPK is also involved in regulating cell proliferation as the downstream effector of the RAS signaling pathway. Activated MAPK can enter the nucleus to trigger transcription factors, resulting in cell proliferation and differentiation ^[21]. MAPK is activated by phosphorylation ^[22]. RAF inhibitors have been found to activate MAPK by relieving inhibitory autophosphorylation ^[23]. A study also revealed that p-Akt can decrease Raf protein activity by phosphorylating Ser259 on the Raf protein. This reduces MAPK phosphorylation levels ^[24]. This may explain why our study found increased p-Akt levels, but decreased p-MAPK protein levels, in prostate cancer tissues compared to benign prostatic hyperplasia tissues.

In conclusion, this study indicates that p-Akt levels are elevated, but p-MAPK protein levels are lower in prostate cancer tissues and suggests that high p-Akt levels may be one of the causes of low p-MAPK protein levels. Our findings suggest that a high p-Akt/p-MAPK ratio might be a diagnostic marker for early diagnosis of prostate cancer.

CONFLICT OF INTERESTS

The authors declare that they have no conflict of interests.

How to Cite This Article

Wan B, Zeng Q, Liu Y. A Comparative Analysis of MAPK and Akt Phosphorylation in Prostate Cancer Tissues. Med One. 2016; 1(1): 2; https://doi.org/10.20900/mo.20160002
